Connectors

Connectors enable seamless content ingestion from a wide range of external sources, including third-party repositories like ServiceNow, Microsoft SharePoint, Atlassian’s Confluence, IBM Domino, etc, allowing users to search across diverse data repositories from a unified interface.

Search AI provides in-built connectors to enable crawling specific third-party content management applications. Each connector is purpose-built to integrate with a specific platform, ensuring optimized data extraction and synchronization. The system supports configuring multiple connectors simultaneously, allowing the application to ingest and index data from several third-party sources in parallel.

By leveraging these connectors, organizations can deliver a unified and intelligent search experience.

Understanding Connectors

Connectors allow the application to integrate with third-party platforms by establishing a secure connection and enabling seamless data ingestion via the APIs exposed by the applications. Once the connection is configured and authentication is completed, data from the third-party application is ingested, indexed, and made available for search within Search AI.

The **access privileges **of the content are maintained as per the privileges assigned to the user in the third-party repository. This ensures that only the files accessible to the user in the third-party application are visible to the user via Search AI as well.

During each synchronization cycle, the connector performs incremental updates, retrieving only newly added or modified data based on change timestamps. Any content that has already been indexed and remains unchanged is skipped, ensuring efficient and optimized syncing.

Refer to the Connector Directory for the complete list of applications supported via connectors. For any specific integration requirements, please contact us.

Authorization Support for Connectors

Search AI supports two types of authorization mechanisms.

  1. Basic: Basic Authorization involves sending a username and password with each request. These credentials are encoded and sent as a Base64-encoded string in the request header. To use this type of authorization, provide your username and password.

  2. OAuth 2.0: The OAuth 2.0 framework allows third-party applications to access resources on behalf of a user without sharing the credentials. It involves the exchange of access tokens between the client application and the authorization server. To use this type of authorization mechanism, register Search AI as an Inbound OAuth client in your backend application.

OAuth 2.0 protocol defines several grant types for different use cases. Each grant type is designed to address specific authorization scenarios.

Currently, SearchAI supports the following grant types:

  1. Client credentials Grant Type: In this type, the client application(SearchAI, here) directly accesses the resources from the backend application. The client sends the client ID and client secret and gets an access token to access the resources directly. For this type of authentication, provide the client ID and client secret generated after registering Search AI as an OAuth client application.

  2. Authorization Code Grant Type: In the type, the client application(SearchAI) accesses the resources on behalf of a user. Here’s how it works:

    • The client application (in this case, Search AI) initiates the OAuth flow by redirecting the user to the authorization server's authorization endpoint, where the user is prompted to log in to the authorization server.
    • If the login is successful, the authorization server redirects the user back to the client application's redirect URI, along with an authorization code.
    • Upon receiving the authorization code, the client application makes a POST request to the authorization server's token endpoint.
    • The authorization server verifies the authorization code, client credentials, and a redirect URI and responds with an access token and optionally a refresh token in the body of the response.
    • The client application can now use the access token to make authorized requests to the resources.
    • When an access token expires, the client application can use the refresh token to obtain the new token.

    For this type of authentication, provide the client credentials, and on the consent screen, log in with your user credentials to access the resources.

  3. Password Grant Type: This type of authorization allows the client application to exchange the user's credentials for an access token. Here’s how it works:

    • The client application authenticates itself to the authorization server by sending its client ID and client secret to the token endpoint.
    • The resource owner provides their credentials (username and password) directly to the client application. The client application sends a POST request to the authorization server's token endpoint, including the user's credentials.
    • If the user's credentials are valid and authorized to access the requested resources, the authorization server responds with an access token.
    • The client application can now use the access token to make authorized requests to the resource server on behalf of the user.

    For this type of authorization, provide the client credentials as well as user credentials with access to the required resources.

Managing Connectors

The Connectors are available under the Content Section. There are two tabs that list the configured connectors and the list of all supported connectors. On the UI, supported connectors are organized by the application type for easy navigation. Additionally, configured connectors are marked with a green indicator. Connector Home

Adding a content source using Connector

To set up a new connector, select the application connector from All connectors and provide the configuration details. Choose it from the list of supported connectors and enter the configuration details. For comprehensive instructions on setting up connectors, refer to the specific connector documentation.

>>>>> gd2md-html alert: ERRORs: 0; WARNINGs: 0; ALERTS: 1.

  • See top comment block for details on ERRORs and WARNINGs.
  • In the converted Markdown or HTML, search for inline alerts that start with >>>>> gd2md-html alert: for specific instances that need correction.

Links to alert messages:

alert1

>>>>> PLEASE check and correct alert issues and delete this message and the inline alerts.


Setup Steps

Step 1: Authentication: Provide the necessary authentication details (OAuth credentials, API keys, tokens, etc) to establish connection with the external application.

Step 2: Ingestion: Choose the type of content to be ingested. Apply filters as needed and optionally customize field mappings to align source fields with the Seach AI schema.

Step 3: Permissions: Select the permission level for the users to access content.

Step 4: Configure Sync Settings: Initiate the first sync with the application. You can also configure a scheduler to enable automatic periodic synchronization.

Step 5: View & Verify Content: Once synchronization is complete, view the ingested content in the application to verify successful setup.

Authentication

The authentication varies depending on the third-party application with which the connection will be established. Refer to the specific connector for detailed instructions on authentication.

Managing Content

When configuring a connector, you can define the type of content to be ingested from the source application. By default, Search AI ingests all supported content types from the source. Most connectors support multiple content types, such as pages, articles, tasks, tickets, or documents, depending on the capabilities of the source system.

Refer to the specific connector documentation for a detailed list of supported content types (objects) for each integration.

Under the Ingestion section, choose the content types you want to ingest. For some connectors, you can apply filters to enable selective ingestion e.g., ingesting only content created within a specific timeframe, belonging to a particular category, or assigned to certain users.

Note: Filters are available only if supported by the specific connector.

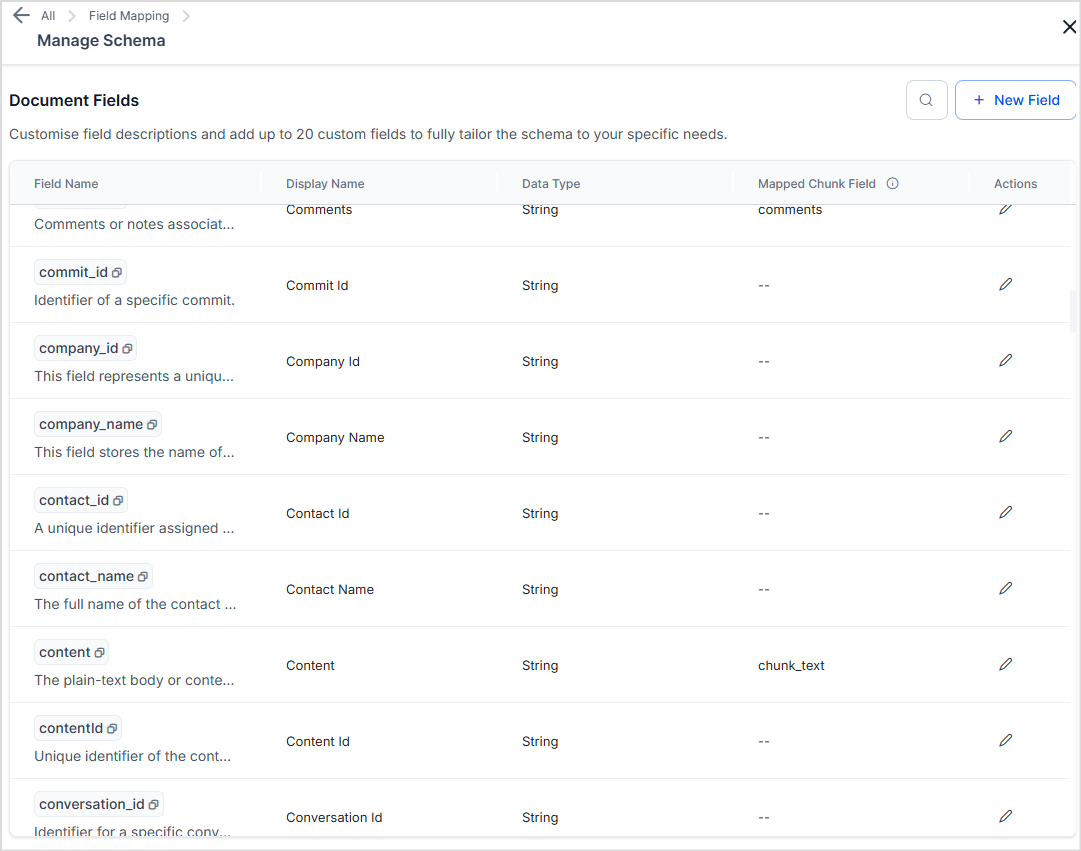

Different applications may use varying field names and data formats. To ensure seamless integration and uniformity across multiple sources, all ingested content is normalized into standard Search AI document fields.

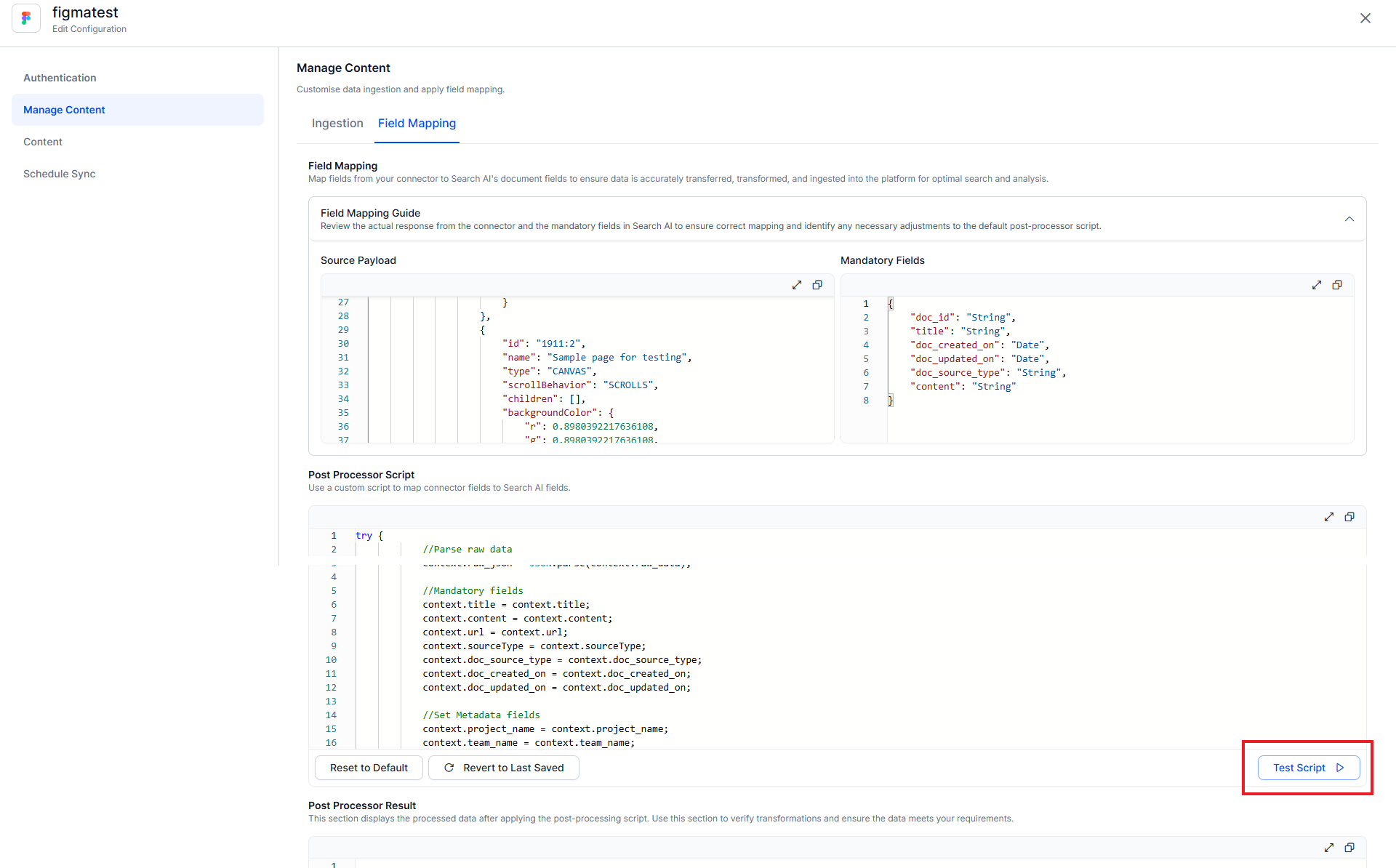

Use the Field Mapping section to map fields from the source (connector) to the corresponding Search AI fields. This ensures that content is accurately transferred, transformed, and indexed for optimal search and analysis.

You can further customize field mappings by writing post-processor scripts, which allow you to manipulate or transform fields during ingestion dynamically.

Example

If the source application stores the document creator as authorDetails.fullName, you can map it to Search AI's standard doc_created_by_name field using the following script:

context.doc_created_by_name = context?.raw_json?.authorDetails?.fullName;

Use the Test Script option to validate your transformation and verify the output after execution. Only after a successful test, the field mappings are updated.

alt_text

Enabling RACL

To enable or disable RACL in the supported connectors, go to the Permissions page and select one of the following.

  • Same users as in the source system (Restricted Access): Automatically syncs the permission information for the ingested content from the third-party application.
  • Everyone(Public Access): Irrespective of the permissions in the third-party application, the ingested content is accessible to all SearchAI users.

You can verify the permissions imported in the ingested content in the sys_racl

field in the JSON view of the corresponding content.

For more information on RACL implementation in Search AI, refer to this.

Sync and Ingest Content

By default, when a connector is added, the content is not ingested from the third-party application until a Sync operation is performed. You can either initiate a sync operation manually or schedule an automatic sync.

Note that the files larger than 15MB will be skipped during the ingestion process. Ensure your files are within the size limit for proper ingestion. To increase this limit, reach out to our support team.

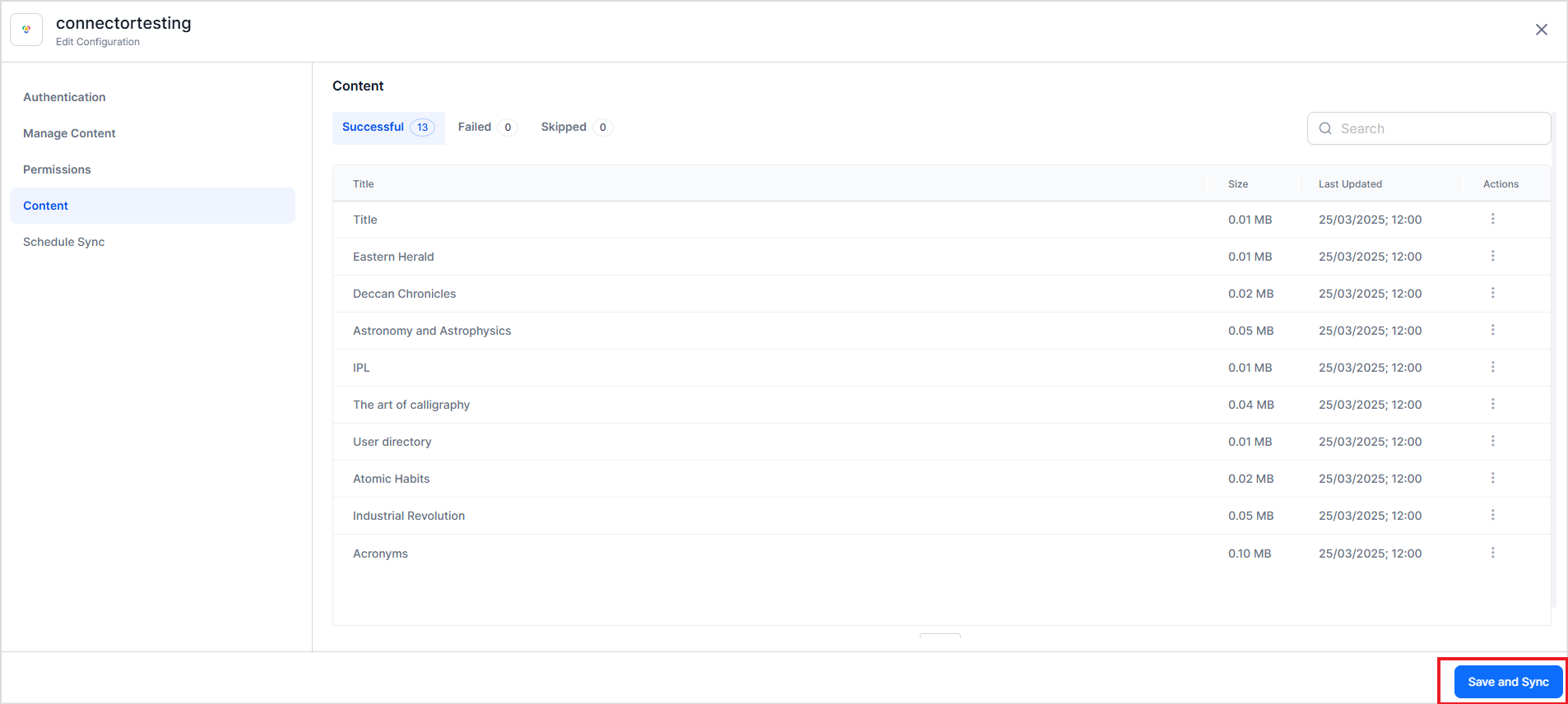

To initiate a sync operation manually, click the Save and Sync button at any time.

Sync Content

Status of Ingested Content

Upon initiating the synchronization operation, the ingestion of the content from the connector begins. You can monitor the progress of this operation by navigating to the Schedule Sync page. The ingested content is displayed under the Content page, which features three separate tabs based on the ingestion status of the content.

  • Successful: This section lists content that has been successfully ingested.
  • Failed: Here, you will find content that failed to ingest.
  • Skipped: This section includes content that was bypassed during the ingestion process.

For both failed and skipped content, the application provides detailed logs that can be useful for troubleshooting. These logs include potential reasons for the failure and actionable steps to facilitate successful ingestion in the future. By reviewing these logs, users can gain insights into the issues encountered and take informed actions to resolve them, ensuring a smoother ingestion process moving forward.

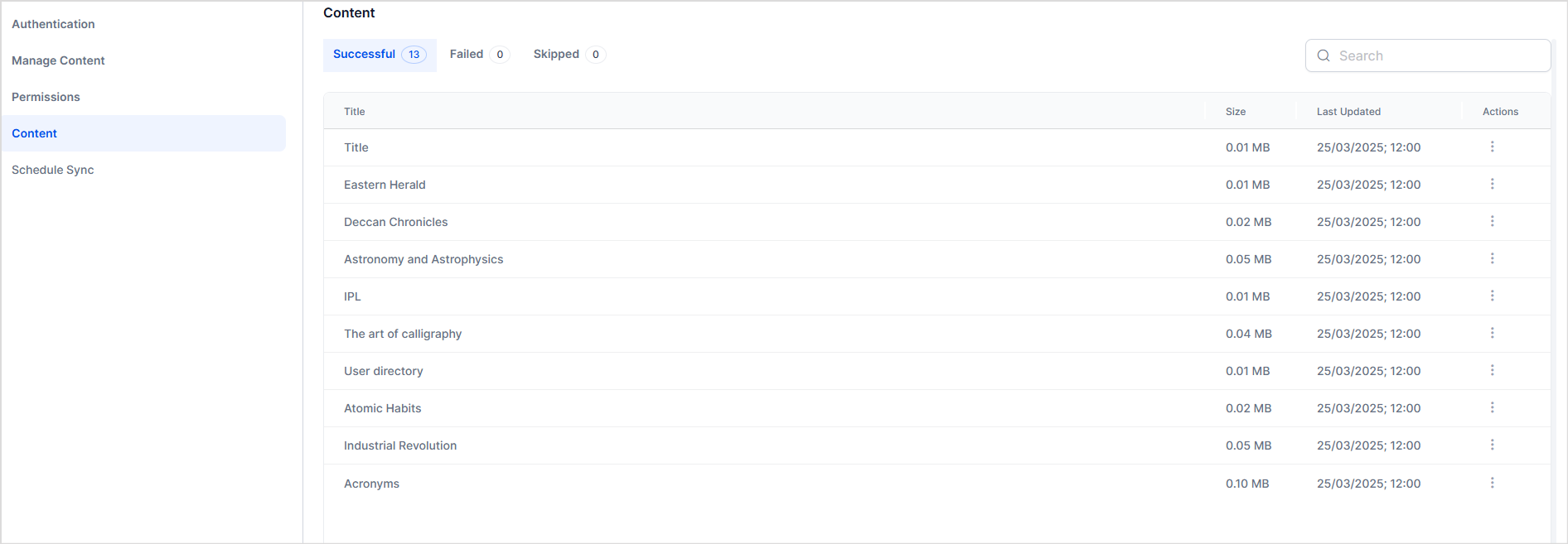

Content Page

Click on any of the content items to view the details of the ingested content. It provides an overview of the ingested content like file type, URL, preview of the content of the file, etc. Click on View JSON to see the details of the ingested content.

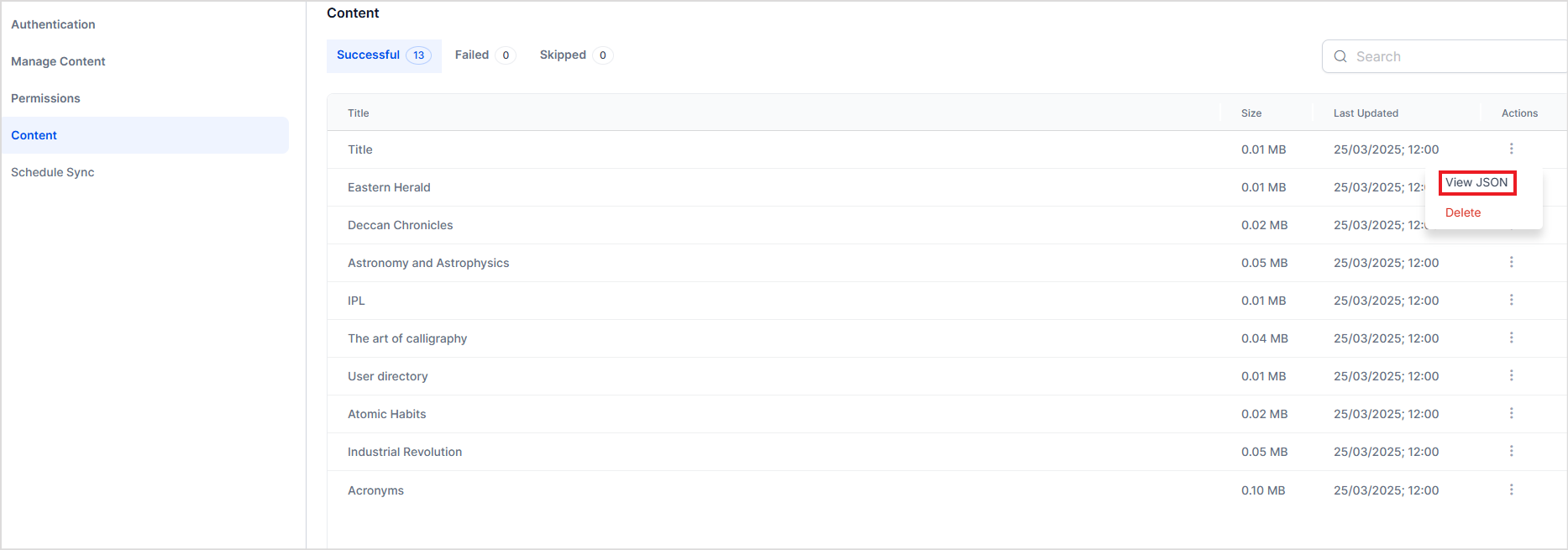

View JSON

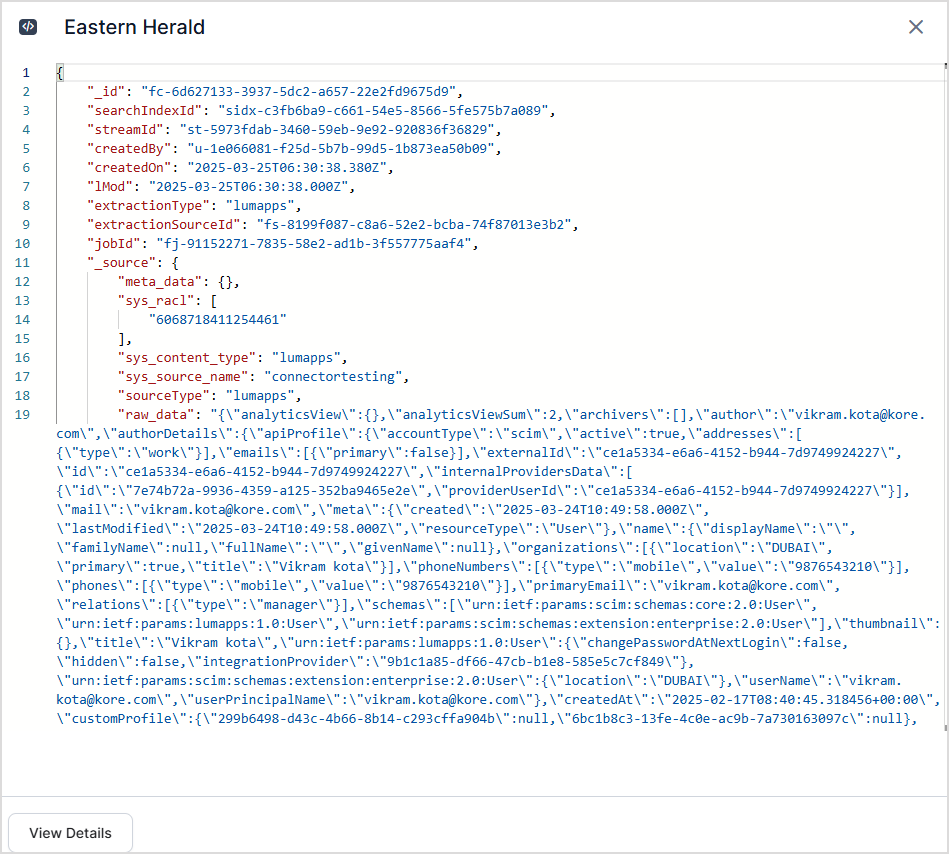

The JSON view provides detailed information of the ingested content. The ingested content and its metadata are captured in standard fields in the Search AI application. For instance, the description or text of the ingested content is set in the content field, the access information is stored in the sys_racl field, sourceType suggests the source of the content, and the meta_data field captures the meta information of the ingested content.

JSON View

Stopping the Synchronization

  • If you manually stop synchronization using the Stop Sync option while the sync job is actively running, it will halt immediately. Any content that has already been ingested at the time of stopping will be available for search.
  • If the sync job is queued when you select Stop Sync, the synchronization will be canceled and will not proceed.

Schedule Sync

You can also schedule an automatic sync operation for a future time. Automatic Sync ensures that the data stays up-to-date and also reduces the administrative overhead of performing manual sync regularly.

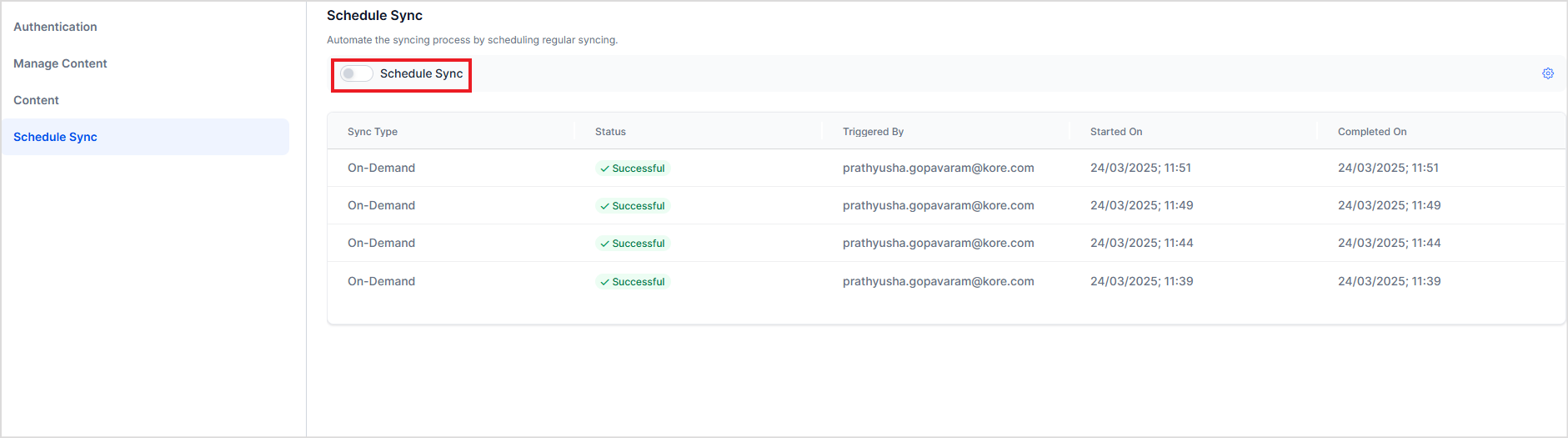

The automatic sync can be scheduled as a one-time activity or to be performed at regular intervals. To schedule a sync operation, enable the Schedule Sync option and provide the date and time of the beginning of the event.

Enable scheduler

To set up a recurring sync schedule, provide the synchronization frequency along with the date and time of the first sync operation. Once set, the scheduler automatically ingests content using the connector at regular intervals.

Recurring Sync

To disable automatic synchronization at any time, use the Schedule Sync slider button.

Enabling/Disabling Connectors

After the connector is configured and the source is connected, you can enable or disable the connection temporarily. When a connector is disabled, sync operation is temporarily disabled. This may be useful for testing, particularly when there is more than one connector configured with your Search AIst application.

Note

Disabling a connector does not delete the ingested content. It disables any future data synchronization operation with the third-party application. The sync is resumed based on the configuration after the connector is enabled again.

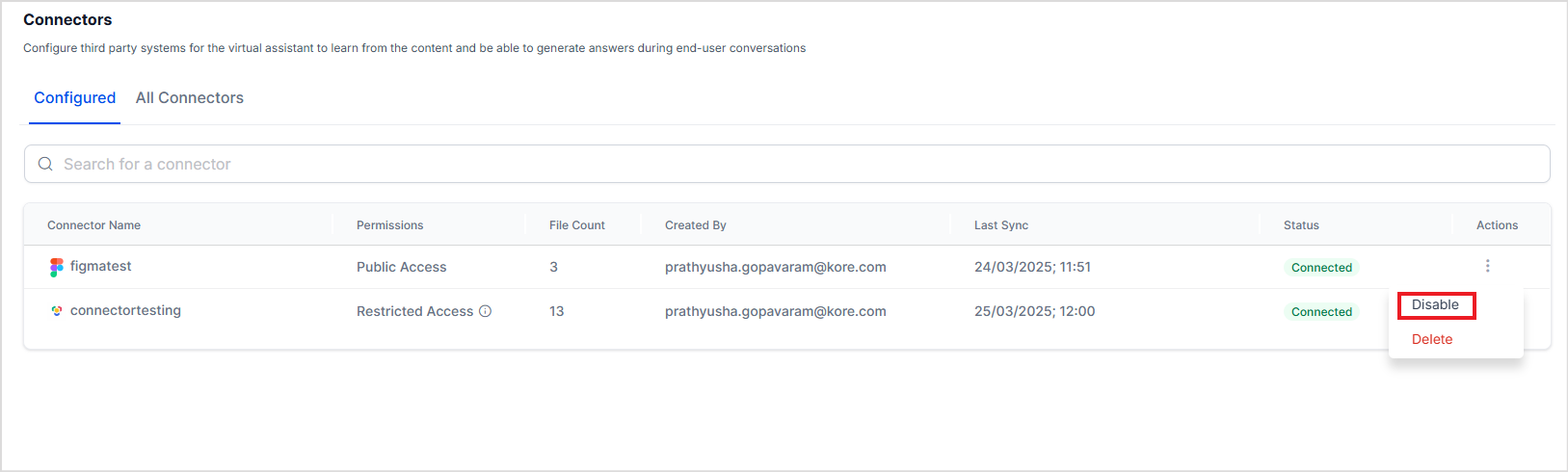

To enable or disable a connector, use the corresponding Action buttons. Disable Connector

Removing the content source integrated using Connector

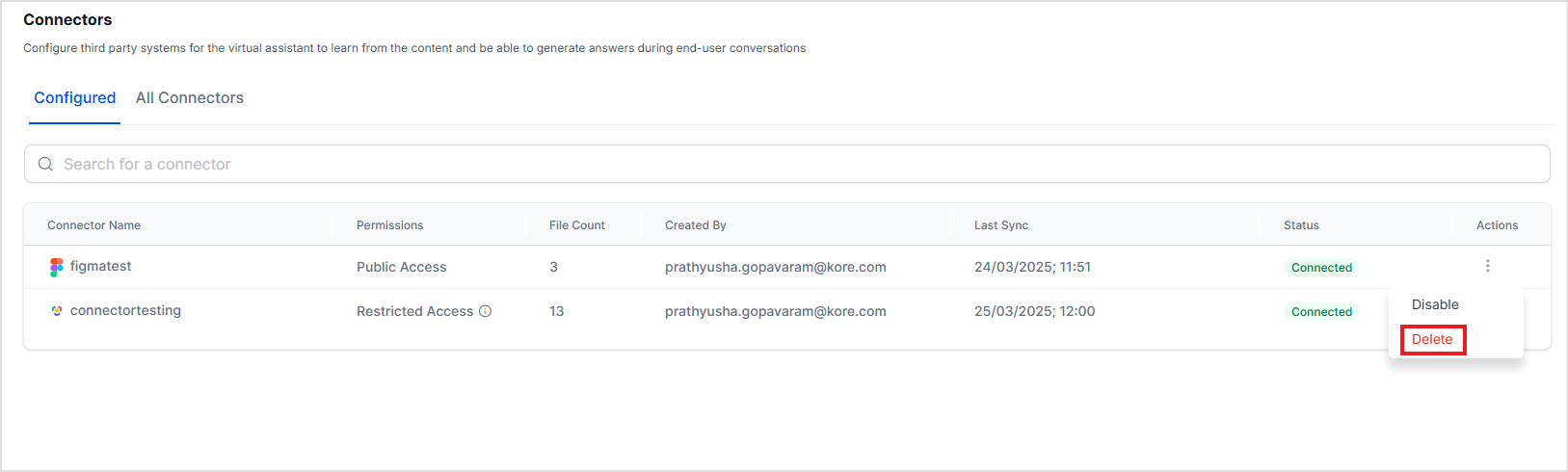

To permanently remove a content source and corresponding connector from Search AI, go to the Authorization tab and click the Remove Source button. This will also delete any data in Search AI indexed from the content source. Delete Connector
