Widget SDK – Message Formatting and Templates¶
Kore.ai Widget SDK allows you to override the default message formatting using markdown and apply templates to display custom formatted bot messages to users on the Widget SDK channel.
For details on Web/Mobile SDK, refer here.
Button Template¶
Shows a clickable button in the header option. The button can be placed anywhere within a message and for any message template.
There are two types of buttons:
- URL type to open an external site. url field should contain the external site address.
- postback type to trigger an utterance in Virtual Assistant. The payload defines the utterance to be passed to the Virtual Assistant and the nlmeta defines the additional information that the Platform needs to trigger the respective task.
Example
var message = {
"templateType": "List",
"widgetName": "Account Summary",
"description": "Showing all accounts",
"headerOptions": {
"layout": {
"align": "top",
"colSize": "25%"
},
"type": "button",
"button":
{
// type can be anyone of ["url", "postback"]
"type": "postback",
"title": "New Account",
"payload": "Apply Account",
"nlmeta": {
"intent": "Apply Account",
"isRefreshplace": "true",
"entities": {
"Name": "John"
},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
}
},
"elements": [
{
"title": "Salary Account",
"subtitle": "Active",
"details": [
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/2539563-200.png"
},
"description": "$ 25 - Feb 8, 2020 08:45 AM - Fuel Purchase"
}
]
}
]
}
print(JSON.stringify(message));
Menu Template¶
Shows a dropdown menu in the header option. The menu can be placed for any message template. There are two types of menu items:
- URL type to open an external site. url field should contain the external site address.
- postback type to trigger an utterance in the Virtual Assistant. The payload defines the utterance to be passed to the assistant and the nlmeta defines the additional information that the Platform needs to trigger the respective task.
Example
var message = {
"templateType": "List",
"widgetName": "Account Summary",
"description": "Showing all accounts",
"headerOptions": {
"layout": {
"align": "top",
"colSize": "25%"
},
"type": "menu",
"menu":
[
{
// type can be anyone of ["url", "postback"]
"type": "url",
"title": "Website",
"url": "kore.ai",
"customdata": {
"key": "value"
}
},
{
// type can be anyone of ["url", "postback"]
"type": "postback",
"title": "New Account",
"payload": "Create Account",
"nlmeta": {
"intent": "Create Account",
"entities": {},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
}
]
},
"elements": [
{
"title": "Salary Account",
"subtitle": "Active",
"details": [
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/2539563-200.png"
},
"description": "$ 25 - Feb 8, 2020 08:45 AM - Fuel Purchase"
}
]
}
]
}
print(JSON.stringify(message));
List Template¶
Shows a formatted list of date to the user with clickable text and images as choices for additional information or trigger tasks.
Example
var message = {
"templateType": "List",
"widgetName": "Account Summary",
"description": "Showing all accounts",
"headerOptions": {
"layout": {
"align": "top",
"colSize": "25%"
},
"type": "url",
"url": {
"title": "Open Site",
"link": "kore.ai"
},
},
"elements": [
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/1863652-200.png"
},
"title": "Salary Account",
"subtitle": "Active",
"buttonsLayout": {
"displayLimit": {
"count": 2 //adds an open icon if more than 2 elements are present
},
"style": "fitToWidth"
},
"value": {
"layout": {
"align": "top",
"colSize": "25%"
},
"type": "text",
"text": "$ 45",
},
"details": [
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/2539563-200.png"
},
"description": "$ 25 - Feb 8, 2020 08:45 AM - Fuel Purchase"
},
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/953447-200.png"
},
"description": "$ 77 - Feb 9, 2020 02:23 PM - Library Enrollment"
},
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/2539563-200.png"
},
"description": "$ 18 - Feb 9, 2020 04:03 PM - Sainsbury's"
}
],
"default_action": {
"type": "postback",
"payload": "Show recent transactions"
},
"buttons": [
{
"type": "postback",
"title": "Statement",
"payload": "Account Statement",
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/2033288-200.png"
},
"nlmeta": {
"intent": "Account Statement",
"isRefreshplace": "true",
"entities": {
"entity_name": "entity_value"
},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
},
{
"type": "postback",
"title": "Upgrade",
"payload": "Upgrade Account",
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/1586653-200.png"
},
"nlmeta": {
"intent": "Upgrade Account",
"isRefreshplace": "true",
"entities": {
"entity_name": "entity_value"
},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
}
]
},
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/2119994-200.png"
},
"title": "Infinia Credit card",
"subtitle": "Active - Payment Due on Feb 14, 2020",
"buttonsLayout": {
"displayLimit": {
"count": 3
},
"style": "fitToWidth"
},
"value": {
"layout": {
"align": "top",
"colSize": "25%"
},
"type": "text",
"text": "$ 8,520",
},
"details": [
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/953447-200.png"
},
"description": "$ 78 - Feb 3, 2020 07:03 PM - Pizzabar"
},
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/953447-200.png"
},
"description": "$ 12 - Feb 5, 2020 11:23 AM - McDonald's"
},
{
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/953447-200.png"
},
"description": "$ 62 - Feb 6, 2020 02:11 PM - CarzRent"
}
],
"default_action": {
"type": "postback",
"payload": "Postback text payload"
},
"buttons": [
{
"type": "postback",
"title": "Statement",
"payload": "Statement",
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/2033288-200.png"
},
"nlmeta": {
"intent": "name of the intent",
"isRefreshplace": "true",
"entities": {
"entity_name": "entity_value"
},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
},
{
"type": "postback",
"title": "Pay Dues",
"payload": "Pau Dues",
"nlmeta": {
"intent": "name of the intent",
"isRefreshplace": "true",
"entities": {
"entity_name": "entity_value"
},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
},
{
"type": "postback",
"title": "Redeem",
"payload": "Redeem",
"nlmeta": {
"intent": "name of the intent",
"isRefreshplace": "true",
"entities": {
"entity_name": "entity_value"
},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
},
{
"type": "postback",
"title": "Upgrade",
"payload": "Upgrade",
"nlmeta": {
"intent": "name of the intent",
"isRefreshplace": "true",
"entities": {
"entity_name": "entity_value"
},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
},
{
"type": "postback",
"title": "Block",
"payload": "Block",
"nlmeta": {
"intent": "name of the intent",
"isRefreshplace": "true",
"entities": {
"entity_name": "entity_value"
},
"interruptionOptions": "discardAll"
},
"customdata": {
"key": "value"
}
}
]
}
]
}
print(JSON.stringify(message));

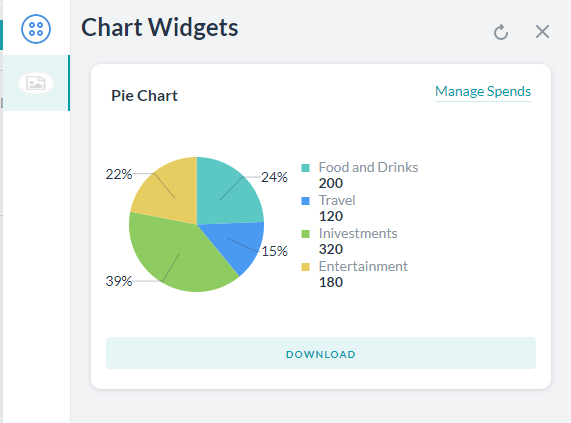

Pie Chart Template¶
Shows the data in a Pie chart
Sample
var data = {
"templateType": "piechart",
"pie_type": "regular",
"title": "Spend Analysis",
"headerOptions": {
"type": "url",
"url": {
"title": "Manage Spends",
"link": "https://kore.ai"
}
},
"elements": [
{
"title": "Food and Drinks",
"value": "200",
"displayValue": "$ 200"
},
{
"title": "Travel",
"value": "120",
"displayValue": "$ 120"
},
{
"title": "Inivestments",
"value": "320",
"displayValue": "$ 320"
},
{
"title": "Entertainment",
"value": "180",
"displayValue": "$ 180"
}
],
"buttons": [
{
"type": "postback",
"title": "Download",
"utterance": "Show Expense Report",
"payload": "Show Expense Report"
}
]
};
print(JSON.stringify(data));
Line Chart Template¶
Shows the data in a line chart.
Sample
var data = {
"templateType": "linechart",
"headerOptions": {
"type": "url",
"url": {
"title": "Manage Spends",
"link": "https://kore.ai"
},
"image": {
"image_type": "image",
"image_src": "https://static.thenounproject.com/png/1863652-200.png"
},
},
"X_axis": [
"F&B",
"Travel",
"Investments",
"Entertainment"
],
"Auto_adjust_X_axis": "yes",
"elements": [
{
"title": "Jan",
"values": [
20,
12,
32,
18
],
"displayValues": [
"$20k",
"$12k",
"$32k",
"$18k"
]
},
{
"title": "Feb",
"values": [
30,
15,
12,
60
],
"displayValues": [
"$30k",
"$15k",
"$12k",
"$60k"
]
}
],
"buttons": [
{
"type": "postback",
"title": "Download",
"utterance": "Download Report",
"payload": "Download Report"
}
],
"speech_hint": "Here is your report"
};
print(JSON.stringify(data));
Note
To understand customized JavaScript responses and channel-specific templates, refer to Customize JavaScript Responses in User Prompts.
