Speech Customization (Call Control Parameters)

This section provides in-depth information on customizing speech behavior using call control parameters.

Introduction to Call Control Parameters

Call control parameters are general-purpose parameters that can modify a call's behavior, including ASR/STT & TTS configurations.

Note

Automatic Speech Recognition (ASR) and Speech-to-Text (STT) are two terms that refer to the same technology. Both involve converting spoken language into written text by analyzing and interpreting audio input. The terms are used interchangeably, describing the same function—transforming speech into readable, actionable text.

There are two ways to define the Call Control Parameters - Node Level and Channel Level.

You can apply Call Control Parameters at either the Session or Node level, offering more flexibility in managing call behavior.

• Session-Level Parameters: Add the prefix session. to apply parameters throughout the session (for example, session.ttsprovider).
• Node-Level Parameters: Add the prefix node. to apply parameters only at a specific node (for example, node.ttsprovider).
• Default Behavior: Parameters without a prefix are considered session-level by default.
• Node-level parameters take precedence over session-level parameters. If no node-level parameters are defined, session-level properties will be applied.

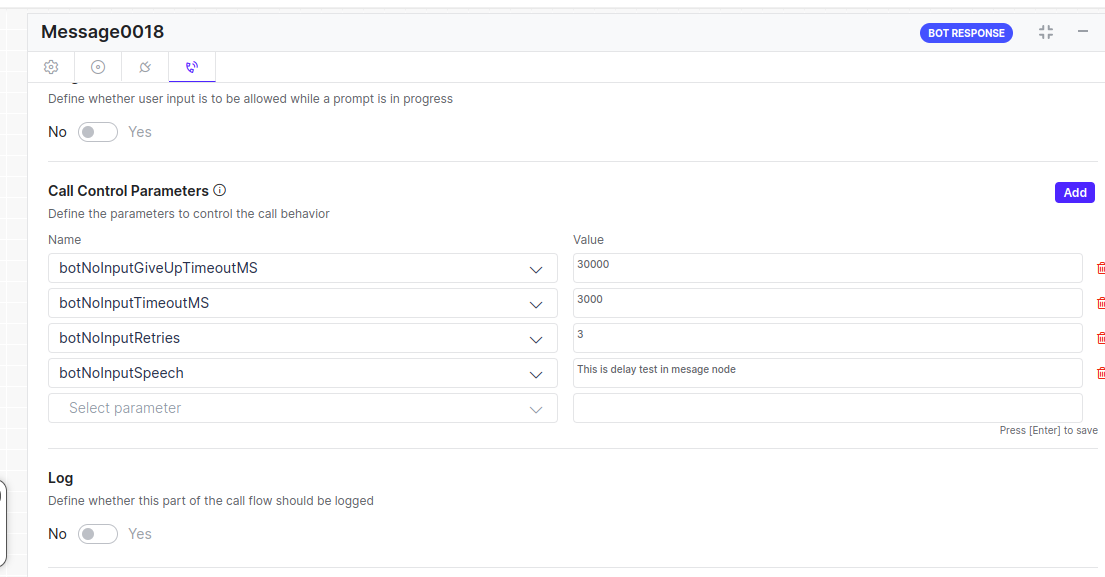

Node Level Call Control

The call control section is Available In Entity Node/Message Node/Confirmation Node > IVR Properties > Advanced Controls. Learn more.

Channel Level Call Control

Update/Modify Parameters

When updating language settings or modifying Automatic Speech Recognition (ASR) and Text-to-Speech (TTS) parameters in Call Control Parameters, users can specify the updated field along with a minimal set of required parameters.

For example, if a user has already configured the STT provider and language in the call control parameters and wants to add a n../smart-assist-gateway.md#step-4-define-the-call-control-parameterse existing values. Users only need to provide the additional sttLanguage parameter without redefining the previously set values.

This behavior applies to Session-Level Call Control Parameters.

Example

Existing Parameters:

{
  "sttProvider": "microsoft",
  "sttLanguage": "en-IN"
}

Adding a New Language:

{
  "sttLanguage": "en-ES"
}

In this scenario, the system retains the existing sttProvider and previously set sttLanguage, ensuring that only the new parameter is added without requiring users to re-enter unchanged values.

Supported Speech Engines (ASR/TTS)

Voice Gateway supports several third-party service providers for ASR/TTS. Learn more

Supported Call Control Parameters

Provider Related Parameters

Speech-to-text (STT) and text-to-speech (TTS) services interface with the user using a selected language (for example, English US, English UK, or German).

TTS services also use a selected voice (for example, female or male) to respond.

• Use STT for recognizer: sttProvider → google, microsoft

• Use TTS for synthesizer: ttsProvider → google, microsoft, aws

Note

• Apply the following parameters only when STT is set as Recognizer.
• Otherwise, the system uses default bot-level or Voice Gateway settings.
• These properties are applied at the session level.

Examples

JSON

{
  "sttProvider": "google",
  "sttLanguage": "en-IN",
  "ttsProvider": "google",
  "ttsLanguage": "en-IN",
  "voiceName": "en-IN-Wavenet-A"
}

Parameter	Type	Supported STT/TTS	Description	Example
sttProvider	String	All	Sets the speech-to-text engine. You can change the provider dynamically during a call.	"sttProvider": "google"
sttLanguage	String	All	Sets the STT language. The transcript language matches this value.	"sttLanguage": "en-US"
ttsProvider	String	All	Sets the text-to-speech provider, similar to sttProvider.	"ttsProvider": "microsoft"
ttsLanguage	String	All	Sets the language used for TTS. Ensure it matches the voiceName.	"ttsLanguage": "en-US"
voiceName	String	All	Required for TTS output. The voice must align with ttsLanguage.	"voiceName": "en-AU-NatashaNeural" Example: json<br>{<br> "ttsProvider": "microsoft",<br> "ttsLanguage": "en-AU",<br> "voiceName": "en-AU-NatashaNeural"<br>}
enableSpeechInput	Boolean	All	When set to false, disables speech input and allows only DTMF input. Default is true. Use this only through the Call Control Parameter.	"enableSpeechInput": false

Labels and Fallback Provider Related Parameters

Label – Assign/Create a label only if you need to create multiple speech services from the same vendor. Then, use the label in your application to specify which service to use.

How to Configure Label

1. Add a speech service inside the Speech tab.

2. Select a provider and add a label with a unique name.

3. Use the same label in the call control parameter.

4. At the same node where you use fallback call control parameters, you must also pass the primary Recognizer and Synthesizer.

Examples:

JSON

{
  "sttProvider": "google",
  "sttLanguage": "en-US",
  "sttLabel": "google-stt-2"
}

STT

{
  "sttProvider": "microsoft",
  "sttLabel": "my_azure-US",
  "sttLanguage": "en-US"
}

TTS

{
  "ttsProvider": "microsoft",
  "ttsLanguage": "en-US",
  "voiceName": "en-US-AmberNeural",
  "ttsLabel": "my_azure-US"
}

Fallback

{
  "sttProvider": "microsoft",
  "sttLabel": "my_azure-US",
  "sttLanguage": "en-US",
  "ttsProvider": "microsoft",
  "ttsLanguage": "en-US",
  "voiceName": "en-US-AmberNeural",
  "ttsLabel": "my_azure-US",
  "sttFallbackProvider": "microsoft",
  "sttFallbackLanguage": "en-US",
  "sttFallbackLabel": "my_azure_Europe",
  "ttsFallbackProvider": "microsoft",
  "ttsFallbackLanguage": "en-US",
  "ttsFallbackLabel": "my_azure_Europe",
  "ttsFallbackVoiceName": "en-US-AmberNeural"
}

Notes

• The node at which you use fallback call control parameters must also define the primary recognizer and synthesizer.
• Best practice: use the same ASR engine in fallback with a different label or region.
• If the current provider fails, Voice Gateway switches to the fallback provider.
• Fallback properties are applied at the session level.

Parameter	Type	Description	Example Values
sttLabel	String	Uniquely identifies the ASR engine in Voice Gateway.	my_azure-US
sttFallbackLabel	String	Fallback label for ASR; switch happens on error. Prefer same vendor, different region.	my_azure_Europe
sttFallbackProvider	String	Specifies fallback STT provider.	microsoft
sttFallbackLanguage	String	Specifies fallback STT language.	en-US
ttsLabel	String	Uniquely identifies the TTS engine in Voice Gateway.	my_azure-US
ttsFallbackLabel	String	Fallback label for TTS.	my_azure_Europe
ttsFallbackProvider	String	Specifies fallback TTS provider.	microsoft
ttsFallbackLanguage	String	Specifies fallback TTS language.	en-US
ttsFallbackVoiceName	String	Specifies fallback voice name for TTS.	en-US-AmberNeural

Continuous ASR Related Parameters

Continuous ASR (Automatic Speech Recognition) allows the speech-to-text engine to handle user inputs like phone numbers or customer IDs that may include pauses between utterances. This improves recognition accuracy for digit or character strings.

Note

This feature is only available for Microsoft.

Microsoft Azure offers a property called AzureSegmentationSilenceTimeout that performs the same function as Continuous ASR. Since Azure's ASR engine handles silence detection directly (rather than the Voice Gateway), it achieves higher accuracy when merging utterances.

• AzureSegmentationSilenceTimeout is more accurate than Continuous ASR. Learn more.

Application Scope:

Both continuousASRTimeoutInMS and AzureSegmentationSilenceTimeout apply at the session level. They remain active for the entire call and can be updated at individual nodes as needed.

Parameter	Type	Scope	Description	Example
continuousASRTimeoutInMS	Number (milliseconds)	ALL	Specifies the silence duration to wait after receiving a transcript before returning the result. If another transcript is received within this timeout, the input is merged and continued.	5000 (5 seconds)
continuousASRDigits	Character (DTMF key)	ALL	Specifies a DTMF key that, if pressed, immediately ends the speech recognition process and returns the gathered input.	&

Barge-In Related Parameters

Barge-In allows the Voice Gateway to detect and respond when a user interrupts the bot by speaking or entering DTMF digits while the bot is still responding. This enables quicker interactions by preventing users from waiting for the bot to finish speaking.

Note

Barge-In applies at the node level.

Parameter	Type	Scope	Description	Example
listenDuringPrompt	Boolean (true/false)	ALL	If set to false, the bot will not listen to user speech until it finishes playing the response. Defaults to true.	true
bargeInMinWordCount	Number	ALL	When barge-in is enabled, this defines the minimum number of words required to interrupt the bot's speech. Defaults to 1.	1
bargeInOnDTMF	Boolean (true/false)	ALL	If true, DTMF input during bot speech interrupts playback, and the system starts collecting speech input.	true

Timeout Related Parameters

These parameters control how long the Voice Gateway waits for user input (speech or DTMF).

Note

All timeout-related parameters apply at the node level.

Parameter	Type	Scope	Description	Example
userNoInputTimeoutMS	Number (milliseconds)	ALL	Maximum wait time to receive user input. If set to 0, Voice Gateway waits indefinitely.	userNoInputTimeoutMS = 20000
dtmfCollectInterDigitTimeoutMS	Number (milliseconds)	ALL	Timeout between DTMF digit inputs. If the user doesn't enter another digit within this time, the gateway submits the collected digits to the bot.
dtmfCollectSubmitDigit	Number	ALL	Defines a special DTMF digit that submits all collected digits immediately to the bot, bypassing timeout and max digit wait.
dtmfCollectMaxDigits	Number	ALL	Maximum number of DTMF digits to collect. If the user enters more than this number, only the first maxDigits are accepted.	dtmfCollectMaxDigits = 5
dtmfCollectminDigits	Number	ALL	Minimum number of DTMF digits expected. Defaults to 1.
dtmfCollectnumDigits	Number	ALL	Exact number of DTMF digits to collect. The bot waits until this number is reached before processing.

Common ASR Parameters

Parameter	Type	Supporting STT/TTS	Description	Example
alternativeLanguages	Array of Objects	Google, Microsoft, Deepgram	Array of alternative languages the user might speak. Based on the utterance, the ASR chooses from the defined options.	json<br>[<br> { "language": "de-DE", "voiceName": "de-DE-KatjaNeural" },<br> { "language": "fr-FR", "voiceName": "fr-FR-DeniseNeural" }<br>]
sttMinConfidence	Number (0.1–0.9)	ALL	If the transcript's confidence score is below this threshold, the input is ignored and the timeout prompt is triggered. Ensures only high-confidence transcriptions are accepted.	sttMinConfidence = 0.5
hints with phrase-level boost	Array of Objects	Google, Nvidia	Suggests specific phrases to the STT engine to improve accuracy. You can assign a boost value per phrase. Useful for distinguishing similar-sounding words.	json<br>"hints": [<br> { "phrase": "benign", "boost": 50 },<br> { "phrase": "malignant", "boost": 10 },<br> { "phrase": "biopsy", "boost": 20 }<br>]
hints with hintsBoost	Array + Number	Google, Microsoft, Nvidia	Instead of boosting each phrase individually, apply a single boost value to the entire array of hints.	json<br>"hints": ["benign", "malignant", "biopsy"],<br>"hintsBoost": 50
sttDisablePunctuation	Boolean	Google, Microsoft	Controls punctuation in ASR output. false enables punctuation (default); true disables it.	sttDisablePunctuation: true
vadEnable	Boolean	ALL	If true, the system delays connecting to the cloud recognizer until voice activity is detected.
vadVoiceMS	Number (milliseconds)	ALL	Specifies how many milliseconds of detected speech are required before connecting to the cloud recognizer. Only applies if vadEnable is true.
vadMode	Number (0–3)	ALL	Determines the sensitivity of the voice activity detector. Lower values make it more sensitive. Only applies if vadEnable is true.

Microsoft ASR

Parameter	Type	Supporting STT/TTS	Description	Example / More Info
azureSpeechSegmentationSilenceTimeoutMs	Number	—	Sets timeout between phrases. Unlike continuous ASR (handled by Voice Gateway), Azure handles segmentation, improving accuracy.	More Info
sttEndpointID	String	—	Specifies a custom Microsoft endpoint instead of the default regional endpoint.	—
azurePostProcessing	String	—	Enables final transcript enhancements such as text normalization, punctuation, or custom formatting.	—
azureSpeechRecognitionMode	String (Enum: AtStart, Continuous)	—	- AtStart: Starts transcription at first detected input and stops after the utterance ends. - Continuous: Keeps transcribing without stopping. Ideal for long sessions.	azureSpeechRecognitionMode = "Continuous"
profanityOption	String (Enum: masked, removed, raw)	—	Controls how profane words appear in the transcript. Default: raw.	profanityOption = "masked"
initialSpeechTimeoutMs	Number (milliseconds)	—	Sets how long the system waits for the user to start speaking before timing out.	—
requestSnr	Boolean	—	If set to true, includes signal-to-noise ratio in the response.	—
outputFormat	String (simple, detailed)	—	Sets the transcript detail level. Default: simple.	—

Google ASR

Parameter	Type	Supporting STT/TTS	Description	Example / Notes
sttProfanityFilter	Boolean	—	Enables profanity filtering in transcripts. Default: false.	—
singleUtterance	Boolean	—	If true, returns only a single utterance/transcript.	—
sttModel	String	—	Specifies the speech recognition model. Default: phone_call.	—
sttEnhancedModel	Boolean	—	Enables the use of enhanced models for improved accuracy.	—
words	Boolean	—	Enables word-level timestamps in the transcript.	—
diarization	Boolean	—	Enables speaker diarization (i.e., identifying speakers).	—
diarizationMinSpeakers	Number	—	Sets the minimum number of speakers expected.	—
diarizationMaxSpeakers	Number	—	Sets the maximum number of speakers expected.	—
interactionType	String	—	Specifies interaction type (e.g., discussion, presentation, phone_call, voicemail, professionally_produced, voice_search, voice_command, dictation).	—
naicsCode	Number	—	Sets a relevant industry NAICS code to tailor recognition.	—
googleServiceVersion	String (v1, v2)	—	Specifies the Google ASR API version in use.	—
googleRecognizerId	String	—	Identifies a specific speech recognition model.	—
googleSpeechStartTimeoutMs	Number	—	Time (in ms) to wait before detecting speech initiation timeout.	—
googleSpeechEndTimeoutMs	Number	—	Time (in ms) of silence to wait before detecting end of speech.	—
googleEnableVoiceActivityEvents	Boolean	—	Enables start/stop speech detection events during recognition.	—
googleTranscriptNormalization	Array	—	Normalizes transcripts (for example, punctuation, casing).	—

AWS ASR

Parameter	Type	Supporting STT/TTS	Description	Example / Notes
awsAccessKey	String	—	AWS access key used for authenticating requests.	—
awsSecretKey	String	—	Secret key used with the access key for authentication.	—
awsSecurityToken	String	—	Temporary security token for requests using AWS Security Token Service (STS). Optional.	—
awsRegion	String	—	AWS region for the service requests (for example, us-west-2, eu-central-1).	—
awsVocabularyFilterName	String	—	Name of the vocabulary filter used to exclude specific words or phrases from transcription.	—
awsVocabularyFilterMethod	String (enum)	—	Method for handling filtered words: • "remove" – Removes the word from transcript • "mask" – Replaces the word with asterisks • "tag" – Tags the word for reference	—
awsLanguageModelName	String	—	Name of the custom language model to use for domain-specific transcription.	—
awsPiiEntityTypes	Array	—	List of Personally Identifiable Information (PII) entity types to detect (e.g., ["NAME", "EMAIL", "SSN"]).	—
awsPiiIdentifyEntities	Boolean	—	Indicates whether to detect and highlight PII in the transcript.	—

NVIDIA ASR

Parameter	Type	Supporting STT/TTS	Description	Example / Notes
nvidiaRivaUri	String	—	gRPC endpoint (ip:port) where the NVIDIA Riva ASR service is hosted.	—
nvidiaMaxAlternatives	Number	—	Number of alternative transcriptions to return.	—
nvidiaProfanityFilter	Boolean	—	Enables or disables profanity filtering in transcripts.	—
nvidiaWordTimeOffsets	Boolean	—	Enables word-level timestamp details in the transcript.	—
nvidiaVerbatimTranscripts	Boolean	—	Indicates whether to return verbatim (unprocessed) transcripts.	—
nvidiaCustomConfiguration	Object	—	Object containing key-value pairs for sending custom configuration to NVIDIA Riva.	—
nvidiaPunctuation	Boolean	—	Indicates whether to include punctuation in the transcript output.	—

Deepgram ASR

Parameter	Type	Supporting STT/TTS	Description	Example / Notes
deepgramApiKey	String	—	Deepgram API key used for authentication. Overrides settings in the Voice Gateway portal.	—
deepgramTier	String	—	Specifies the Deepgram tier: enhanced or base.	—
sttModel	String	—	Deepgram model used for processing audio. Possible values: general, meeting, phonecall, voicemail, finance, conversationalai, video, custom.	nova-2-phonecall
deepgramCustomModel	String	—	ID of the custom model.	—
deepgramVersion	String	—	Version of the Deepgram model to use.	—
deepgramPunctuate	Boolean	—	Adds punctuation and capitalization to the transcript.	—
deepgramProfanityFilter	Boolean	—	Removes profanity from the transcript.	—
deepgramRedact	Enum (String)	—	Redacts sensitive data from transcript. Options: pci, numbers, true, ssn.	—
deepgramDiarize	Boolean	—	Assigns a speaker to each word in the transcript.	—
deepgramDiarizeVersion	String	—	Use 2021-07-14.0 to enable legacy diarization.	—
deepgramNer	Boolean	—	Enables Named Entity Recognition.	—
deepgramMultichannel	Boolean	—	Transcribes each audio channel independently.	—
deepgramAlternatives	Number	—	Specifies the number of alternative transcripts to return.	—
deepgramNumerals	Boolean	—	Converts written numbers (e.g., "one") to numerical format (e.g., "1").	—
deepgramSearch	Array	—	An array of terms or phrases to search within the submitted audio.	—
deepgramReplace	Array	—	An array of terms or phrases to search and replace within the submitted audio.	—
deepgramKeywords	Array	—	Keywords to boost or suppress in transcription for better context understanding.	—
deepgramEndpointing	Boolean / Number	—	Sets the silence duration (in ms) to consider a speaker has finished. Use false to disable. Default is 10 ms. Recommend ≤ 1000 ms. For longer pauses, use utteranceEndMs.	—
deepgramVadTurnoff	Number	—	Not documented. Placeholder for voice activity detection (VAD) settings.	—
deepgramTag	String	—	Adds a tag to the request. Useful for tracking and usage reports.	—
deepgramUtteranceEndMs	Number	—	Duration (ms) of silence used to detect the end of an utterance in live audio.	—
deepgramShortUtterance	Boolean	—	Immediately returns transcript when is_final is set. Ideal for short commands.	—
deepgramSmartFormat	Boolean	—	Enables Deepgram's Smart Formatting for improved transcript readability. Behavior depends on model/language combination.	—
deepgramFillerWords	Boolean	—	Includes filler words such as "uh" or "um" in transcripts.	—
deepgramkeyterm	String	—	Boosts recall accuracy for key terms or phrases. Improves Keyword Recall Rate (KRR) by up to 90%.	—

Common TTS Parameters

Parameter	Type	Supporting STT/ TTS	Description	Examples
disableTtsCache	Boolean	ALL	Using cache for calling TTS engine if same statement or word found.
ttsEnhancedVoice	String	AWS	Amazon Polly has four voice engines that convert input text into life-like speech. These include Generative, Long-form, Neural, and Standard. To use an Amazon Polly voice	"standard", "neural", "generative", "long-form"
ttsGender	String (MALE, FEMALE, NEUTRAL)	Google
ttsLoop	Number / String	ALL	The ttsLoop parameter is used in Text-to-Speech (TTS) systems to control the repeated playback of a TTS-generated message. When ttsLoop is enabled, the specified TTS message will be played multiple times in a loop.	Example - ttsLoop = 2 Text will be played twice
earlyMedia	Boolean	ALL	The Early Media parameter in TTS (Text-to-Speech) is used to control the playback of audio prompts or messages before a call is fully connected.
ttsOptions	Object	PlayHT, Deepgram, ElevenLabs, Whisper	It is used to tune the TTS.

TTS Options in Voice Gateway

Voice Gateway now supports a ttsOptions parameter that allows bot developers to customize Text-to-Speech (TTS) messages by passing dynamic objects tailored to the specific TTS provider. Depending on the provider, these options can be used to fine-tune aspects like voice settings, speed, and other properties.

Note

Each TTS provider will have its own set of customizable parameters. For more detailed information on the parameters they support, refer to their official websites.

Structure of ttsOptions

The ttsOptions object contains provider-specific settings in a key-value format. Below are examples of different TTS providers:

ElevenLabs

• optimize_streaming_latency: Adjusts the latency during streaming.
• voice_settings: Includes various voice customization options like stability, similarity_boost, and use_speaker_boost. Learn more.
• speed: Controls the speed of the generated speech. The default value is 1, and the allowable values are >=0.7 and <=1.2. Values below 1 will slow down the speech, while values above 1 will speed it up. Learn more.

PlayHT

• quality: Sets the quality of the audio output.
• speed: Controls the playback speed.
• emotion, voice_guidance, style_guidance, and text_guidance: Allow further customization of the voice's emotional tone and style. Learn more.
• Voice_engine: The voice engine used to synthesize the voice. It defaults to PlayDialog.

Note

Use the play-dialog model from PlayHT instead of the old models, as the old models are returning errors. Set the following parameters:

ttsProvider = playht
ttsLanguage = en-US
ttsOptions = {"voice_engine": "PlayDialog"}
voiceName = <respective voice name>

Deepgram

Apart from generic parameters like ttsLanguage and voiceName, which are common across most TTS engines, Deepgram offers a few additional parameters that enhance customization:

• encoding (string): You can specify the desired encoding format for the output audio file, such as mp3 or wav.
• model (enum): Defines the AI model to be used for synthesizing the text into speech. The default model is aura-asteria-en, optimized for natural-sounding English voice output.
• sample_rate (string): This enables you to set the sample rate of the audio output, offering control over the quality and clarity of the sound produced.
• Container: The Container feature allows users to specify the desired file format wrapper for the output audio generated through text-to-speech synthesis.

These parameters provide additional flexibility for developers to fine-tune the audio output to meet their specific needs. All these parameters will be set inside ttsOptions. Learn more.

AWS

Apart from generic parameters like ttsLanguage and voiceName, which are common across most TTS engines, Aws offers a few additional parameters that enhance customization, like ttsEnhanceVoice, also known as an engine.

Amazon Polly has four voice engines that convert input text into lifelike speech. These include “standard," "neural," "generative," and "long-form."

ttsEnhancedVoice = “neural”

Open AI (Whisper)

Apart from generic parameters like ttsLanguage and voiceName, which are common across most TTS engines, Whisper offers a few additional parameters that enhance customization, like a model.

For real-time applications, the standard tts-1 model provides the lowest latency but at a lower quality than the tts-1-hd model. Due to how the audio is generated, tts-1 is likely to generate more static content in certain situations than tts-1-hd. In some cases, the audio may not have noticeable differences depending on your listening device and the person.

ttsOptions = {
   model = "tts-1"
}

Common Use Cases for Call Control Parameters

Continuous ASR

Continuous ASR (Automatic Speech Recognition) is a feature that allows Speech-to-Text (STT) recognition to be tuned for the collection of things like phone numbers, customer identifiers, and other strings of digits or characters, which, when spoken, are often spoken with pauses in between utterances. Two parameters to enable it are:

Parameter	Type	Supporting STT/TTS	Description
continuousASRTimeoutInMS	Number (milliseconds)	STT – Google, Microsoft TTS – Not Required	Duration of silence (in milliseconds) to wait after receiving a transcript from the STT vendor before returning the result. If another transcript is received before this timeout, transcripts are combined and recognition continues. The combined result is returned after silence exceeds the timeout. Example: 5000 for 5 seconds
continuousASRDigits	Digit (for example, *, %, &, #)	STT – Google, Microsoft TTS – Not Required	A DTMF key that terminates the gather operation and returns the collected results immediately.

Handling Bot Delay

If the bot takes time to respond to a message, you can configure Voice Gateway to take action.

Handle Bot Delay After User Input

The delay is only applied when Voice Gateway sends a response to the bot and is waiting for the bot's reply. This includes delays at the Entity Node, Confirmation Node, or Message Node with an "On Intent" (User-Bot delay).

If a delay occurs between two Message nodes, the bot developer must handle it manually by playing audio and stopping it after the delay.

By setting timeout properties, the following actions can be configured: ../images/handle-bot-delay.png * Play a textual prompt to the user * Play an audio file to the user * Disconnect the call

Use Case:

• To play a message to the user, configure a timeout on the botNoInputTimeoutMS parameter and define the action:
• To play a textual prompt, set the prompt on the botNoInputSpeech parameter.
• To play an audio file, set the file URL using the botNoInputUrl parameter.
• To replay the message if the timeout is exceeded multiple times, configure the number of retries using the botNoInputRetries parameter.
• A separate timeout for disconnecting the call can be configured using the botNoInputGiveUpTimeoutMS parameter, which is set to 30 seconds by default.

Parameters description

The following table lists the bot parameters that are used to configure this feature:

Parameter	Type	Description	Required
botNoInputGiveUpTimeoutMS	Number	Defines the timeout (in milliseconds) for the bot response before the call is disconnected. If no response is received when the timeout expires, Voice Gateway disconnects the call. Default: 30 seconds.	Yes Default: 30 sec
botNoInputTimeoutMS	Number	Defines the timeout (in milliseconds) before a prompt is played to the user. If no input is received from the bot, Voice Gateway plays a textual prompt (botNoInputSpeech) or an audio file (botNoInputUrl).	Yes
botNoInputRetries	Number	Specifies the number of times the bot will retry after a no-input timeout. For example, if set to 2, and timeout is 1000 ms, the prompt will play two more times if no bot response is received.	Yes
botNoInputSpeech	String / Array	Defines the prompt to play when no input is received from the bot. Can include: - Plain text - SSML - Audio URL Example: ["https://audiourl", "This is second message"]	Yes
botNoInputUrl	String	Specifies a URL from which an audio file is played to the user when the bot does not respond within the defined timeout.	Yes

Example:

Note

botNoInputSpeech can contain multiple messages, including audio URLs.

../images/message-node-paremeters.png Example: botNoInputSpeech = [“this is first delay Msg”, “https://dummy.wav”,” this is third textual Message”].

Handle Delay Between Two Message Nodes

Voice Gateway can only handle delays when it sends a response to the bot and waits for the bot's reply. If a delay occurs, Voice Gateway can handle it. If a delay occurs between a Message node or Script node where the user hasn’t spoken, Voice Gateway won’t be aware of the delay, and the bot developer must handle it manually.

If a Service Node is placed between two Message nodes (delay observed between two Message nodes): This must be managed manually, as the gateway has already received a command to play a message and is not waiting for user input. The gateway will not initiate a delay timer and will wait for the next bot message.

To handle this scenario:

• Play music before the API call in the Message node.
• Configure the Service node.
• Deliver the message after the Service node.

Note

If you receive a response from the API and don’t want to play the full music, immediately abort the music and play the Message node prompt using the channel override utility function:

print(voiceUtils.abortPrompt(“Dummy message“)) → (The message parameter is optional).

Barge-In Scenarios

The Barge-In feature controls KoreVG behavior in scenarios where the user starts speaking or dials DTMF digits while the bot is playing its response to the user. In other words, the user interrupts ("barges-in") the bot. ../images/optional-message-parameter.png | Parameter | Type | Supporting STT/TTS | Description | | -------------------------------- | ------------------------------------------------------------------------------------ | ------------------------------------------------ | ----------------------------------------------------------------------------------------------------------------------------- | | listenDuringPrompt | Boolean (true or false)
Similar to Barge-In | STT – Google and Microsoft
TTS – Not Required | If false, the bot does not listen for user speech until the response finishes playing.
Default: true. | | bargeInMinWordCount | Number | STT – Google and Microsoft
TTS – Not Required | If Barge-In is enabled, the bot only interrupts playback after the specified number of words are spoken.
Default: 1. | | bargeInOnDTMF | Boolean | STT – Google and Microsoft
TTS – Not Required | Allows users to press a key to interrupt the audio playback. After pressing a key, the user can speak their input. | | dtmfCollectInterDigitTimeoutMS | Number (milliseconds) | STT – Google and Microsoft
TTS – Not Required | Time allowed between DTMF key presses before sending all digits to the bot. | | dtmfCollectSubmitDigit | Number | STT – Google and Microsoft
TTS – Not Required | Special digit that submits all collected DTMF input immediately, bypassing the timeout or max digit limit. | | dtmfCollectMaxDigits | Number | STT – Google and Microsoft
TTS – Not Required | Maximum number of DTMF digits to collect.
Example: If set to 5 and input is 1234567, only 12345 is processed. | | dtmfCollectminDigits | Number | STT – Google and Microsoft
TTS – Not Required | Minimum number of DTMF digits to collect.
Default: 1. | | dtmfCollectnumDigits | Number | STT – Google and Microsoft
TTS – Not Required | Exact number of DTMF digits to collect. | | input | Array of strings
Valid values: ['digits'], ['speech'], ['digits', 'speech'] | STT – Google and Microsoft
TTS – Not Required | Specifies allowed input types.
Default: ['digits']. |

Language Detection

In this setup, developers do not need to use DTMF or other methods to switch the bot's language. Instead, the bot will automatically detect the language based on the user's utterance.

For example, if a user speaks in English, the conversation will continue in English. If the user switches to Spanish, the language will switch to Spanish. Learn more.

Configuration Steps:

1. In Bot Builder (on the child bot), navigate to Languages, add a new language (for example, Spanish), and enable it.
2. Select English as the default language from the language dropdown menu.../../app-settings/language-management/managing-languages-for-multilingual-vas.md#adding-a-language-to-a-virtual-assistant
3. Create a new dialog titled "Language Detection" (or choose a suitable name).
4. Inside this dialog, add an entity node to capture user intent input.
5. Set the entity precedence to 'Intent over Entity' in the advanced controls.
6. Add the AlternativeLanguage call control parameter.
7. Switching languages mid-conversation isn't supported; doing so can cause the bot to lose context. Language detection should happen at the beginning of the conversation (for example, in the welcome task), with the switch based on the user's first utterance.
8. Opt for 'Intent over Entity' to prioritize intent detection in the user's language.
9. Create another dialog with a specific intent (for example, "book flight") and add relevant entities (for example, selecting source and destination).
10. In the entity configuration, include the following call parameters:
    • Name: alternativeLanguages
    • Value: [] (Leave it empty if no further language switching is needed).
11. Add utterances in the desired language and train the bot.
12. Change the language to Spanish in the bot language dropdown.
13. Open the intent and update utterances and intent details in Spanish.
14. Update entity details in Spanish as well.
15. Publish the bot.

These steps will ensure the bot can detect the user's language at the start and adjust the conversation flow accordingly.

Send Feedback
